Elevator with folding doors type BUS
S.H.E 002
SHE 002 is a home-elevator with bus folding type doors and the latest technological advances in the sector. It runs a maximum distance vertical of 15 meters and the minimum space for its installation is only 1000 x 1000 mm, so it is designed so that it can be placed practically anywhere.
It is a low-consumption electrical-single-phase elevator that does not have a counterweight or a machine room. It is not necessary to increase the electrical power of the house for its use. You can choose the finish or customize the cabin panel.
General characteristics
- Minimum shaft : 1.100 x 1.000 mm
- Minimum dimensions car: 800 x 800 mm*.
- Maximum dimensions car: 1.000 x 1.250 mm*.

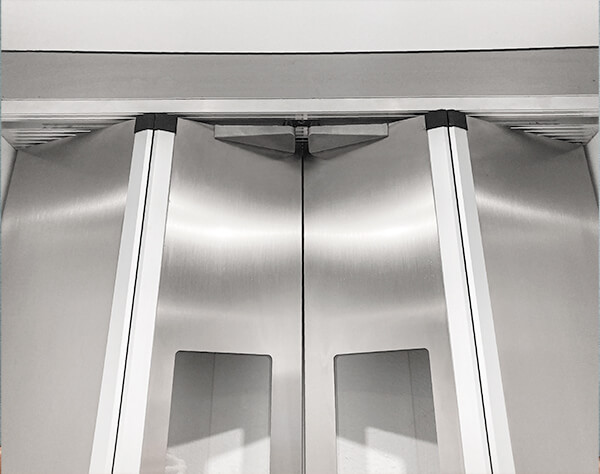

- Featuring bus doors on the lift car.
- Free-access door: 700/800 mm.
- Headroom in the lift car: 2,100 mm.
- Minimum clearance above the lift car: 2,600 mm.
- Minimum shaft pit: 190 mm.
*Check other measurements.
Technical characteristics
- Type of traction: single-phase electric 220v.
- Type of actuation: conveyor belt.
- Nominal load: 300 kg.
- Boardings: single (possibility of double).
- Maximum travel distance: 15m.
- Consumption: 1.5 kW.
- Landing doors: semi-automatic.
- Lift car doors: bus type (option: automatic doors, SHE-003).
- Variable frequency.
Safety elements
- Autonomous rescue system, with doors opening in the event of a power failure.
- In-car “stop” button.
- Two-way telephone.
- Parachute safety device powered by a speed limiter.
- Photoelectric barrier.
- Continuous pulsation for when there are no car doors (mandatory).
- Interlocking of landing doors and car doors when in motion.
- Emergency lighting in the case of power outages.
300KG
CAPACITY
0,15 M/S
SPEED
6
MAXIMUM STOPS
15M
MAXIMUM TRAVEL DISTANCE
